補償器樣本選用說明
1.產品執行標準；
嚴格按照美國膨脹節制造商協會標準《EJMA》和國家標準《GB/T12777-2008金屬波紋管膨脹節通用技術條件》.《GB
/T14525-2010波紋金屬軟管通用技術條件》.《GB/T16749-1997壓力容器波紋膨脹節》.《GB/T15700-1995聚四氟乙烯波紋
補償器通用技術條件》.《Q/3201CT0002-2001非金屬補償器通用技術條件》.《D-LD2000煙風煤粉管道零部件典型手冊》.
《CCS中國船級社》執行。
2.膨脹節的壓力范圍
樣本中各類膨脹節的壓力是t=20度時的設計壓力Pd(Mpa）。我公司生產的金屬軟管各類膨脹節的壓力范圍通常是從真空到10Mpa，
如有特殊的超高壓力要求時，我們也可進行專門的結構設計。

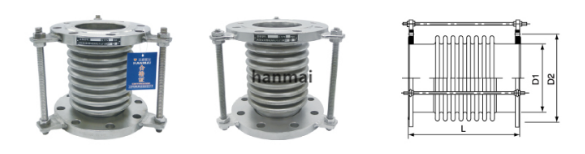

| 不銹鋼補償器技術參數 | |||||||
| 公稱壓力Mpa | 公稱通徑mm | D2/孔數 | 波數N | 補償量mm | 剛度N/mm | 連接尺寸C×S | 長度mm |
| 0.6 | 80 | 150/4 | 4/8 | 12/24 | 320/160 | 89×4 | 270/350 |
| 100 | 170/4 | 4/8 | 15/30 | 420/210 | 108×4.5 | 270/350 | |
| 125 | 200/8 | 4/8 | 13/26 | 480/240 | 133×5 | 270/350 | |
| 150 | 225/8 | 4/8 | 14/28 | 596/298 | 159×5 | 270/350 | |
| 200 | 280/8 | 4/8 | 24/48 | 650/326 | 219×6 | 360/480 | |
| 250 | 335/12 | 4/8 | 23/46 | 800/400 | 273×8 | 360/380 | |
| 300 | 395/12 | 4/8 | 30/59 | 672/336 | 325×8 | 400/540 | |
| 350 | 445/12 | 4/8 | 29/58 | 732/366 | 377×8 | 400/540 | |
| 400 | 495/16 | 4/8 | 28/57 | 830/415 | 426×8 | 400/540 | |
| 450 | 550/16 | 4/8 | 28/56 | 928/464 | 478×8 | 400/540 | |
| 500 | 600/20/16 | 4/8 | 27/54 | 1026/513 | 529×8 | 400/540 | |
| 1.0 | 80 | 160/8/4 | 4/8 | 8/15 | 540/270 | 89×4 | 270/350 |
| 100 | 180/8 | 4/8 | 12/24 | 698/349 | 108×4.5 | 270/350 | |
| 125 | 210/8 | 4/8 | 10/20 | 840/420 | 133×5 | 270/350 | |
| 150 | 240/8 | 4/8 | 11/22 | 1008/504 | 159×5 | 270/350 | |
| 200 | 295/8 | 4/8 | 17/34 | 1493/746 | 219×6 | 360/480 | |
| 250 | 350/12 | 4/8 | 16/32 | 1850/925 | 273×8 | 360/380 | |
| 300 | 400/12 | 4/8 | 21/42 | 1536/768 | 325×8 | 400/540 | |
| 350 | 460/16 | 4/8 | 21/42 | 1682/841 | 377×8 | 400/540 | |
| 400 | 515/16 | 4/8 | 20/40 | 1916/958 | 426×8 | 400/540 | |
| 450 | 565/20 | 4/8 | 20/40 | 2148/1074 | 478×8 | 400/540 | |
| 500 | 620/20 | 4/8 | 20/40 | 2380/490 | 529×8 | 400/540 | |
| 1.6 | 80 | 160/8 | 4/8 | 7/12 | 700/350 | 89×4 | 270/350 |
| 100 | 180/8 | 4/8 | 10/18 | 1323/661 | 108×4.5 | 270/350 | |
| 125 | 210/8 | 4/8 | 8/14 | 1546/773 | 133×5 | 270/350 | |
| 150 | 240/8 | 4/8 | 8.5/17 | 1910/955 | 159×5 | 270/350 | |
| 200 | 295/12 | 4/8 | 16/32 | 1493/746 | 219×6 | 360/480 | |
| 250 | 355/12 | 4/8 | 15/30 | 1850/925 | 273×8 | 360/380 | |
| 300 | 410/12 | 4/8 | 16/32 | 2945/1472 | 325×8 | 400/540 | |
| 350 | 470/16 | 4/8 | 16/32 | 3229/1604 | 377×8 | 400/540 | |
| 400 | 525/16 | 4/8 | 16/32 | 3690/1845 | 426×8 | 400/540 | |
| 450 | 585/20 | 4/8 | 16/32 | 4145/2072 | 478×8 | 400/540 | |
| 500 | 650/20 | 4/8 | 16/32 | 4600/2300 | 529×8 | 400/540 | |
